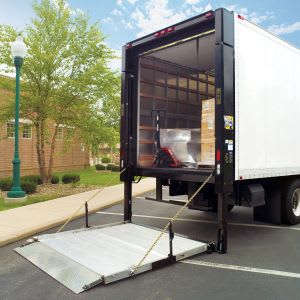

TALLMADGE, OHIO – WALTCO Truck Equipment Co. has introduced the Waltco Direct Lift (WDL) Extra Tough (XT) rail-type liftgate. The Waltco WDL-XT is available in four weight capacities: 3500, 4500, 5500, and 6600 lbs. and in both steel and aluminum platforms.

According to WALTCO, closed circuit, volume-balanced lift cylinders ensure an even lift under any loading condition, without the use of a flow divider valve. The self-bleeding lift cylinders, which are matched to gate capacity, also help reduce installation time.

All wiring and connections feature a plug & play design and meet or exceed all Technology & Maintenance Council (TMC) recommended practices. The hydraulic system, which incorporates a thermally protected power unit, is designed to maximize the fluid flow rate, enhancing the liftgate’s operational performance while minimizing amperage draw requirements.

Other standard features include hardened steel rollers mounted on tapered roller bearings that minimize friction and drag and improve overall performance of the lift; sealed roller bearings to reduce contamination and extend bearing life; a gravity and spring-actuated Positive Transit Mechanism (PTM), which is automatically released when the gate is lowered; and pneumatically assisted deck opening.

Lower columns are reinforced with a one-inch steel wrap to reduce the potential of damage caused by backing into loading docks, while LED lights are fully recessed to reduce both damage- and theft-potential. Hinged covers on the columns make it easier to access key components for service and maintenance. To minimize wear and tear, the operating switches are fully weather-sealed and protected, while the wiring harness is designed to stay completely stationary while the liftgate is in operation.
