Vehicle Upfitting: The Step-by-Step Process
An in-depth look at the upfitting process from start to finish is shared. Each significant step of the way is captured and described.
March 14, 2013

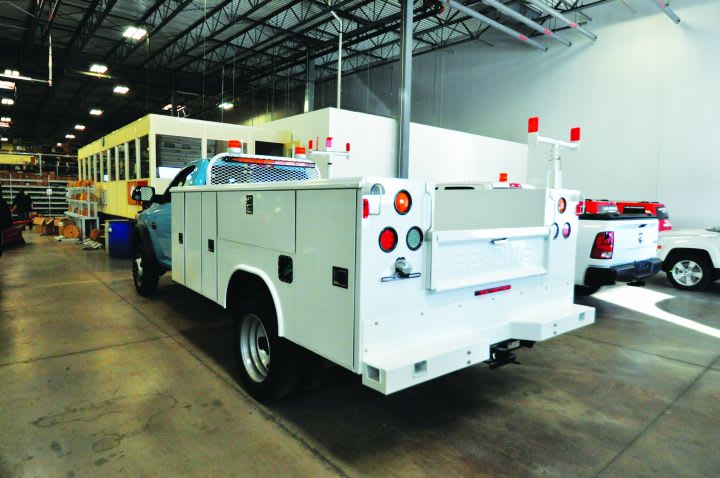

The vehicle has now completed inspection and is ready for final delivery to the end user.
Photo: Auto Truck Group
1 min to read
Ever wonder about the process an upfitted work truck or vehicle goes through before it becomes a finished product? Work Truck takes readers on a journey through the upfit-ting process with the help of Auto Truck Group, an upfitter specializing in designing, manufacturing, and installing work truck equipment.
This article takes you through the upfit process of a Ram 4500 spec’ed for a light maintenance company, which took place at Auto Truck Group’s facility in Bartlett, Ill.
The upfit consists of six main components: painting the chassis, mounting the service body, installing the LED lights, welding the hitch, and installing the cab guard and ladder rack.
The 12 photos in the photo gallery illustrate each step in the upfitting process, from the paint booth to the final inspection where it will be deemed ready for delivery to the end user.
Click here to view the photo gallery.
