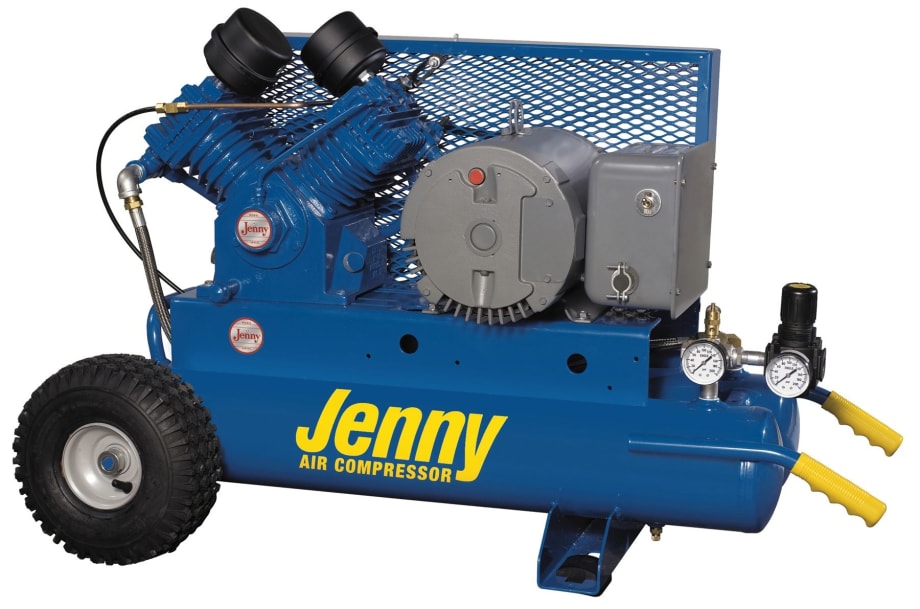

Jenny Products, Inc. offers the GT-Series, the company’s smallest line of electric-powered, two-stage air compressors. Featuring high-pressure output, the GT-Series is ruggedly built for professional use.

The line consists of four models with 8-, 15-, 17- and 30-gallon tanks. All units produce 15.5 CFM at 100 PSI or 15.2 CFM at 175 PSI. They’re driven by commercial-grade, 5-horsepower electric motors, which operate from a 230-volt, single-phase power source.

Numerous features come standard with the compressors to optimize their reliability and reduce maintenance requirements. These include powder-coated air tanks and heavy-duty cast-iron compressor pumps. A directional air shroud, finned intercooler and large flywheel keep pump temperatures low and assist in start-up. Also, Jenny’s professional-duty “Ultimate Blue” synthetic pump oil protects the unit’s pistons, crankshaft, bearings, rings and cylinders through a splash lubrication system. Furthermore, the compressor’s thermal overload protection helps prevent costly damage to the motor.

Additional items have been built into the compressors to prevent damage from harsh jobsite conditions. These include protectively mounted fittings and heavy-duty, totally enclosed belt guards. For maximum portability the units include dual pneumatic wheels, a convenient lift handle and a 6-foot power cord.

Other standard features include pressure relief safety valves, large canister intake filters with replaceable filter elements, manual tank drains, special unloading valves, stainless steel braided discharge hoses, anti-vibration feet, and tank, regulator and outlet pressure gauges.

Options include start/stop control, dual control, a dual voltage switch, an on/off switch, oil sight glass, air line filter and a lubricator. Other pressure configurations can be customized upon request.

Jenny Products’ GT-Series Compressors

Model

Pump

HP

Air Tank (Gallons)

Power Supply

CFM @ 100 PSI

CFM @ 125 PSI

GT5B-8P2

GT

5

8

230V, 1 Phase

15.5

15.2

GT5B-15P2

GT

5

15

230V, 1 Phase

15.5

15.2

GT5B-17P

GT

5

17

230V, 1 Phase

15.5

15.2

GT5B-30P

GT

5

30

230V, 1 Phase

15.5

15.2
