A variety of Champion Low Profile Series fans are available from Maradyne High Performance Fans to increase engine cooling, horsepower, and A/C cooling at idle.

Available in 7-inch to 16-inch fan sizes - all with a depth of 3.19 inches or less - the Champion Series offers a low profile, push-pull fan in a quiet, reversible S-blade design that eliminates vibration contact and increases airflow.  The fans feature sealed motors that are IP68-certified dustproof and waterproof.

Maradyne fans are made from all glass-filled nylon construction and feature concentric rings that prevent the blades from flexing as they achieve maximum RPM.  They are dynamically balanced at the factory for smooth running, less noise and longer life for the motor.

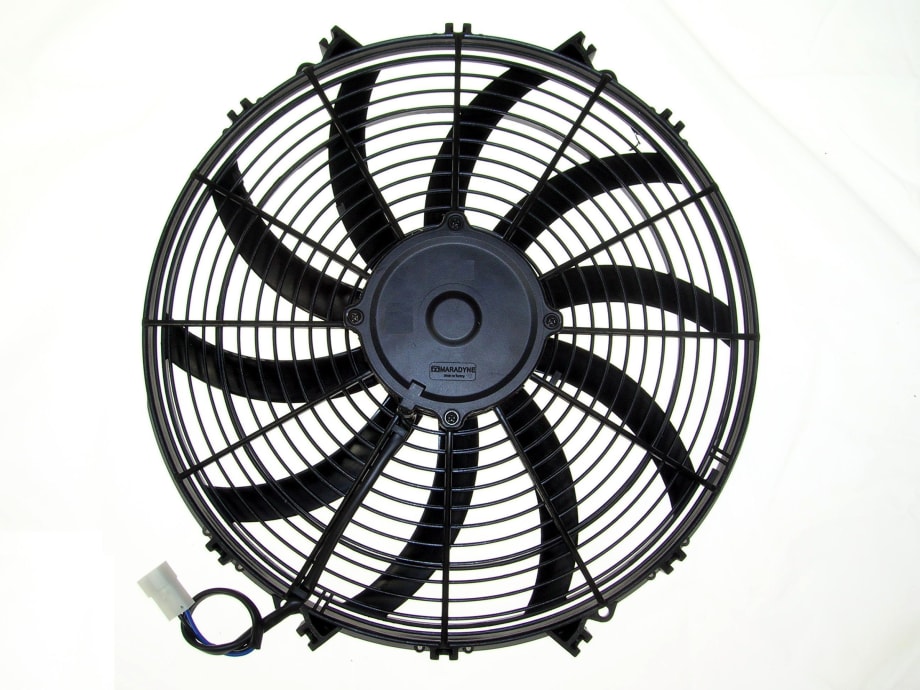

The Champion Low Profile Series 16-inch fan (part # M162K) is the company's most popular fan option, featuring a 225 watt heavy duty motor that delivers 2,170 cubic feet per minute (CFM) with an amp draw of 18.0.  Maradyne sponsors several Nationwide and Cup Series teams, including Jay Robinson Racing (JRR), R3 Motorsports and JTG Daugherty Racing, with the 16-inch fan, which effectively cools high-performance engines during caution laps and in the pit to prevent the engine from burning up.

Additional Champion Low Profile Series product line specifications include:

• The 16-inch fan with 160 watt heavy duty motor delivers 1,810 CFM with an amp draw of 12.3

• The 14-inch fan with 225 watt heavy duty motor delivers 2,315 CFM with an amp draw of 17.2

• The 14-inch fan with 160 watt heavy duty motor delivers 1,555 CFM with an amp draw of 10.1

• The 12-inch fan with 225 watt heavy duty motor delivers 1,565 CFM with an amp draw of 18.0

• The 12-inch fan with 130 watt heavy duty motor delivers 1,155 CFM with an amp draw of 7.7

• The 11-inch fan with 130 watt heavy duty motor delivers 1,110 CFM with an amp draw of 7.4

• The 10-inch fan with 130 watt heavy duty motor delivers 950 CFM with an amp draw of 7.9

• The 9-inch fan with 130 watt heavy duty motor delivers 790 CFM with an amp draw of 7.7

• The 8-inch fan with 130 watt heavy duty motor delivers 540 CFM with an amp draw of 8.1

• The 7-inch fan with 130 watt heavy duty motor delivers 375 CFM with an amp draw of 6.5

Champion Low Profile Series Fans include four 90-degree mounting feet, locking mating pigtail connectors and rubber spacers for proper spacing off the heat exchanger.  The 130-watt motor fans include a nylon tie kit.  In addition, Maradyne offers recommended wire harnesses, sold separately, to operate an adjustable temperature switch (part # MFA100), a 185-degree temperature switch (part # MFA102) or a 195-degree temperature switch (part # MFA103).  Optional brackets are also available.

Maradyne High Performance Fans is a brand owned by DCM Manufacturing, Inc., a wholly owned subsidiary of Dreison International., Inc., which manufactures and sells air movement and air directional accessories and components serving the high performance, off-road equipment, agricultural machinery, heavy duty truck, automotive, bus, RV, marine and military markets.

For more information and dimensional drawings, contact Maradyne High Performance Fans at 800.435.7953; fax 216.362.6342; write to 4540 W. 160th St. Cleveland, OH 44135; or visit www.maradyneHP.com.
