Whether hauling loose granular materials, such as topsoil or sand, or large chunks of construction debris, dump body trucks equip a crew to unload cargo quickly, with little effort, and move on to the next job.

The dump functionality eliminates the need to manually unload the truck, reducing labor time (and costs), which preserves more profit for each job. With a simple push of a button, the dump body tilts either toward the rear or side of the truck, leveraging gravity (instead of manual labor) to pour the payload directly into a dumpster or on the ground.

However, despite all the promise of increased productivity, if either the chassis or dump body is not properly equipped to handle the load, cost savings will vanish due to premature maintenance issues and greater risks to employee safety. Considering that light- and medium-duty dump trucks (up to Class 7) cost as much as $40,000-$70,000 per unit to purchase (depending on dump body type, material, and capabilities), the stakes are high for fleet managers to get the spec right.

So, how should a dump body be spec'd to tackle the job? Here are seven questions to guide the process.

1. Which Dump Body Type Fits the Application?

Will the fleet use the dump body truck for a specific purpose, such as hauling asphalt? Or does it need a more flexible dump that serves multiple purposes? The answers to these questions will help determine what type of dump best fits the application.

Here are four common dump body types built for Class 3 through Class 7 trucks:

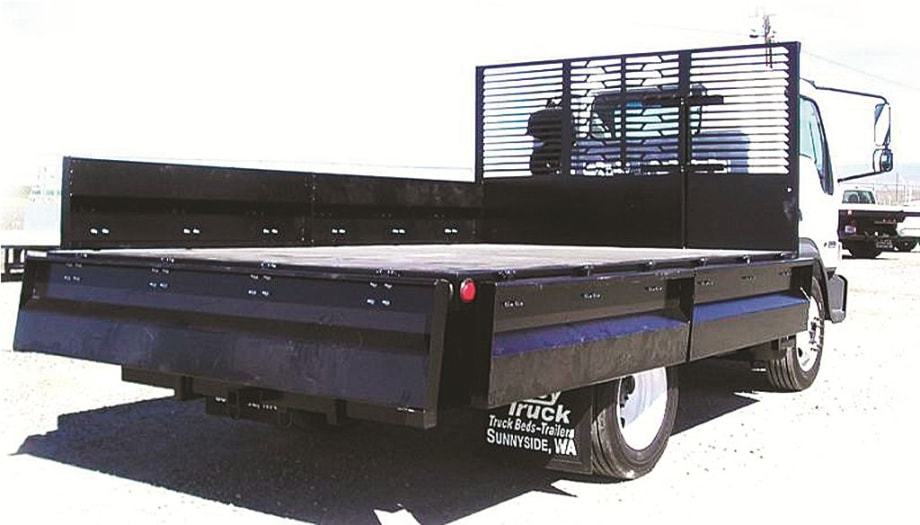

1. Flatbed/platform dumps are primarily flatbed bodies that provide the option for use as a dump body when needed. For applications that use the dump function on occasion, the flatbed dump is a low-cost option that offers flexibility.

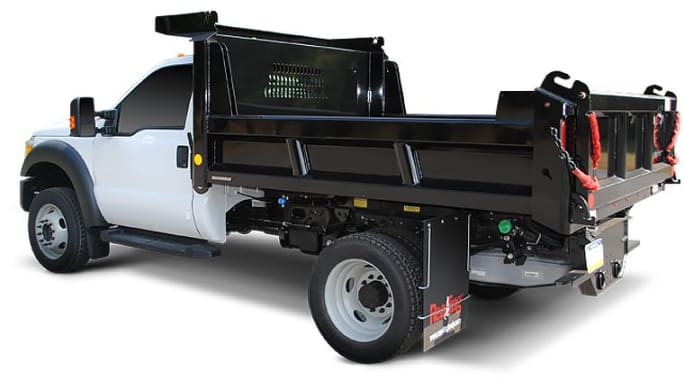

2. Conventional dumps are built with solid stationary sides, welded to the body, and primarily used to haul and dump loose granular materials such as dirt, sand, gravel, etc.
3. Contractor dumps are similar to flatbeds with short (12-24 inch) solid sides that fold down to create unfettered access to load the body. The sides come with a groove that allows users to add a board to make the sides a few inches higher when an application requires extra height. The fleet can use a contractor dump to haul a broad range of materials, such as loose dirt and sand, or large chunks of concrete debris.
4. Landscape dumps can be configured in several different ways. Some landscape dumps have solid sides up to 12-24 inches, with metal mesh adding several inches in height. This "hybrid" solid-mesh side configuration enables hauling loose materials (such as topsoil and mulch) at the bottom of the body and larger branches and brush above that. Options for swing-open rear and side gates are also available.

2. How Much Payload Capacity Does the Dump Truck Need?

This answer determines what size truck chassis is needed for the job.

For example, to haul five cubic yards of sand, weighing 2,700 lbs. per cubic yard, the total payload inside the body is 13,500 lbs. This would require at least a Class 6 through Class 7 truck chassis, depending on the weight of the body and other equipment installed on the truck.

That's assuming the sand is dry. If it is wet, it can weigh as much as 3,300 lbs. per cubic yard. Therefore, the same amount of sand (five cubic yards) that's wet at 3,300 lbs. per cubic yard would raise the payload requirement to 16,500 lbs. That's a 3,000-lb. difference from dry sand, which may require a bigger truck.

Once the maximum payload is estimated, factor a buffer into the calculations to cover any surprises. Then select a chassis that will handle the load.

3. What Size Dump Body Does the Job Require?

When evaluating contractor, landscape, or flatbed dumps, think in terms of length, width, and height of sides (if applicable). For example, the spec may be a 12-ft. flatbed dump, 96 inches wide with 24-inch stake rack sides.

Since conventional dumps are manufactured with the sides, tailgate, and floor fused together to form a single unit, their capacities are spec'd, not in length, height or width, but in terms of cubic yards. A conventional dump body, for example, may be referred to as a "2-yard dump" or "5-yard dump."

4. Which Dump Body Material Fits the Job?

Factors that drive this decision are cost, corrosion resistance, and weight. Steel is usually the lower-cost material and is well-suited for daily heavy-duty usage. For corrosion resistance, the advantage goes to stainless steel and aluminum. In terms of weight, aluminum is the lightest of the three materials, enhancing fuel economy and payload capacity, but is usually not recommended for harsh, heavy-duty use.

5. Should You Choose an Electric or PTO Dump Hoist?

Positioned between the rear axle and back of the cab, the hoist is powered either by the truck battery (electric hoist) or the engine (PTO hoist) to lift the dump body off the truck frame. Which type of hoist works best for an application?

For lighter duty (Class 3 through Class 5 truck) applications or for occasional use, most body manufacturers recommend an electric hoist. Since the electric hoist is powered by the truck battery, it allows users to turn off the engine when operating the dump, offering fuel economy and environmental benefits.

For heavier-duty applications requiring a bigger Class 6 and Class 7 truck chassis, the power-takeoff (PTO) hoist is more common. Since the PTO hoist is driven by the truck engine, it gains greater power and durability in handling heavy loads. The downside, however, is that the driver must keep the engine running to operate the dump body, which eats into the unit's fuel economy.

Consult the body company on which hoist best matches the desired load and dump usage requirements.

6. Do You Need Rear-Dump or Side-Dump Capability?

Most dumps use a single-direction hoist that lifts the top end of the body to dump toward the rear. However, some body companies offer a multi-directional hoist that offers the option to dump toward both the rear and the side. This side dump capability enables the use of the dump function without having to unhook and re-hook a trailer, which saves significant time and hassle.

7. Which Dump Body Options Improve Performance?

Consider the following four options and ask the body manufacturer for a listing of options specific to their offerings.

• Cab shield. Stretches over the top of the cab from the front bulkhead of the dump body, protecting the cab from damage. Cab shields come in a variety of sizes to cover one-fourth to half or even more of the cab.
• Tarp. Used to keep loose material (such as gravel and crushed rock) from flying out of the bed and onto the highway, causing damage to other vehicles. Tarps can be manual or electric. What drives decisions is cost and convenience. If the budget requires a lower-priced option, go with the manual. For greater convenience and efficiency, spec electric.
• Underbody toolboxes. Connected to the frame under the dump body, these toolboxes secure equipment and tools from the elements or theft, without taking up extra cargo space on the body. Underbody toolboxes come in a variety of dimensions and a choice of steel or aluminum. The differences between the two are price and weight. Steel toolboxes cost less while the aluminum boxes weigh less and offer better protection against corrosion.
• Application-specific options. In the landscape industry, for example, some body companies offer the option of a removable dovetail that connects to the rear of the dump body. This way, a landscape crew can lower the ramp on the dovetail and drive their mowers and other equipment onto the dump platform. Then when the crew needs the dump function to unload brush and other lawn debris, they can detach and roll away the dovetail. This saves the landscape company from purchasing two trucks - one to transport equipment and another to dump debris - when one truck can perform both functions.
