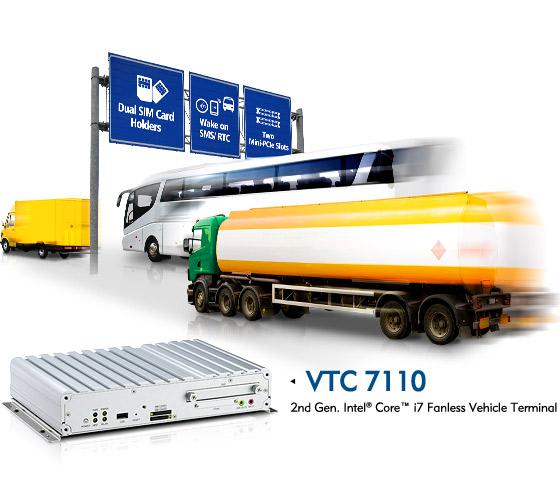

NEXCOM has launched a new series of vehicle terminals composed of VTC 7110-B, VTC 7110-D1, and VTC 7110-C4 with the aim to keep mobile users "always connected." Based on 2nd generation Intel Core processor i7 2610UE, the VTC 7110 series boasts several advanced features including unrivalled computing power and exceptional graphics handling capability that make this platform perfect for use in most in-vehicle environments. With flexible I/O expansions, this series can also be deployed in heavy-duty vehicles and for mobile surveillance applications.

The VTC 7110 series is NEXCOM's new high performance vehicle terminals powered by 2nd generation Intel Core i7 2610UE 1.5GHz processor. With the VTC 7110 series, advanced features which are usually optional on most vehicle terminals, are included within the standard configuration. Dual SIM card holders, wake on SMS/ RTC, and two mini-PCIe slots are all supported to maximize the mobility within mobile environments. This series also allows users to install either 3.5G and Wi-Fi modules or two 3.5G modules.

In addition to the series' standard features, VTC 7110-B has one external SATA HDD bay and CFast socket for quick storage unit replace and two LAN ports for network redundancy.

As for VTC 7110-D1, it has eight input and eight output channels, for a total of sixteen GPIO channels. Isolated RS-232 and RS-422/485 interfaces and CAN bus protocol SAE J1939/1708 are also supported by VTC 7110-D1. Further, VTC 7110-D1 eliminates problems caused by inrush current/voltage, establish reliable vehicular communication network and facilitate monitoring of vehicle subsystem, making it perfect for fleet management, according to the company.

The next variant, VTC 7110-C4, features four channels of Power-over-Ethernet. Combining signal transmission and power supply, this vehicle terminal reduces the numbers of cables laid and streamlines system deployment. Ethernet-based devices supporting 802.3af protocol, such as high resolution IP cameras, can directly connect to VTC 7110-C4 with just one Ethernet cable. Targeted at mobile surveillance, VTC 7110-C4 can be best utilized when its two hot swappable SSDs are configured as data disks, and CFast system disk.

Main Features

• Second generation Intel Core i7 2610UE 1.5GHz processor.

• Two Ethernet LAN ports.

• Removable 2.5" SSD tray.

• 9~36V wide range DC power input.

• Smarter ignition power on/off, delay-time and low voltage protection.

• Rugged fanless design to meet MIL-810F anti-vibration and shock standard.
