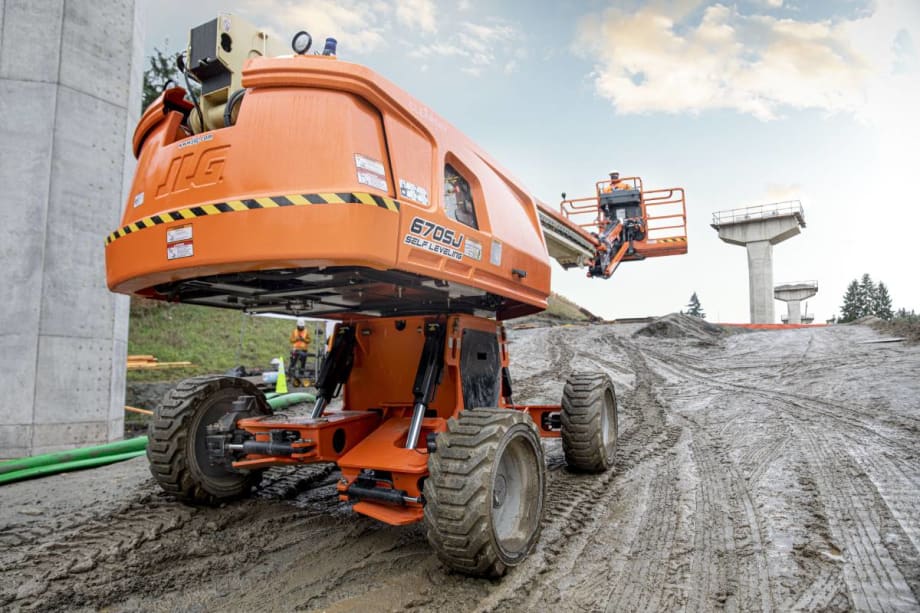

JLG Industries, an Oshkosh Corporation company and manufacturer of mobile elevating work platforms (MEWPs) and telehandlers, has revealed the JLG 670SJ self-leveling boom lift, which is now available in North America. Equipped with JLG’s self-leveling technology, the 670SJ is engineered to automatically adapt to terrain on slopes up to 10 degrees in any direction, while driving with full functionality at a 67 ft. platform height.
The 670SJ’s self-leveling technology is designed to adjust the boom lift’s chassis to the ground conditions — rather than having to adjust the ground conditions to the machine. This allows the 670SJ to navigate uneven terrain while driving at height from one job to the other without lowering the boom, leading to significant productivity gains throughout the workday.
“On the underside of the machine, you can see it has four independent axles, each controlled by its own smart hydraulic cylinders. These enable each wheel to separately follow the contour of the terrain and stay in constant contact with the ground. This not only allows the machine to continuously and seamlessly self-level, but it does so without requiring operator inputs," said Shashank Bhatia, vice president of engineering for MEWPS, JLG.
The 670SJ also boasts three operating modes to maximize transportability on-site or on the road. Self-leveling mode enables the machine to work at full height, with full functionality, on slopes up to 10 degrees. Travel mode can be used when the boom is stowed to move across the job site at a faster rate of speed. Shipping mode allows the entire machine to be lowered once in position on a truck, reducing its travel height.
All of these features are made possible through the machine’s advanced control system. This system continuously receives performance data from various sensors on the machine, then displays the information through a digital display and selectable screen interface in the platform during operation, ensuring users are more knowledgeable about what’s going on at ground level while working at height.
JLG’s self-leveling technology offers a host of benefits for machine operators and their support crews, including reducing (and in some cases even eliminating) the prep work required to level the work area. That means no more pre-grading the site or constructing laborious cribbing before getting to work.
It also eliminates the trial and effort of repositioning a boom lift to find a level work area. This helps operators get into position and up to the work area quicker, maximizes reach capabilities, and reduces the need for larger, higher reaching lifts onsite as a backup for added reach when uneven ground conditions exist.
The 670SJ provides a smoother ride as operators travel across a job site thanks to its advanced control system. It is designed to continuously adjust to the terrain to keep the platform level and minimize movement, thereby reducing operator fatigue, as well as the potential for objects to bounce around and/or out of the platform.
The JLG 670SJ self-leveling boom lift offers a 73 ft. work height and 57 ft. of horizontal reach, with 550 lb. unrestricted and 750 lb. restricted capacities. It also features JLG’s automatic, single sensor load sensing system with zero-load calibration. This functionality keeps the machine within the allowable work envelope by limiting range depending on the platform load.
