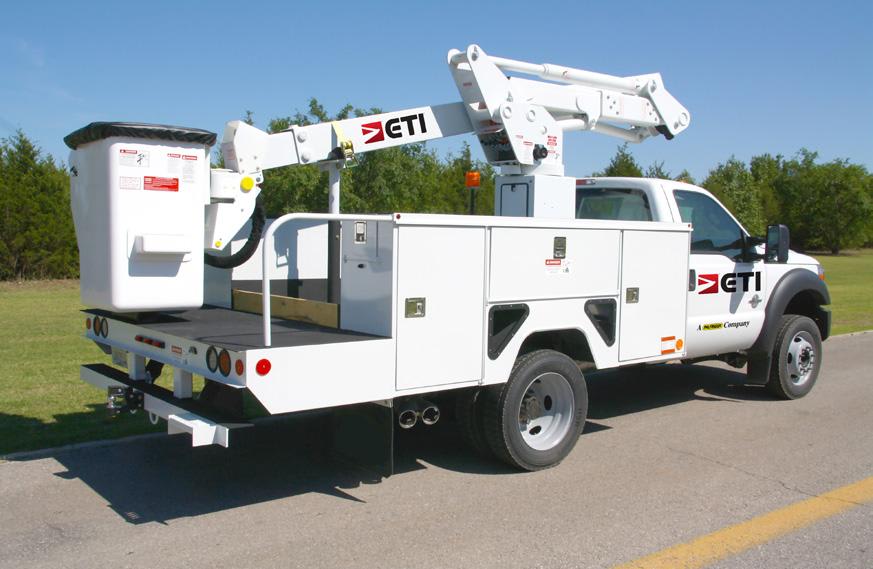

This ETC model is one of the most popular products offered by ETI, according to the company. The ETC 37 IH is an insulated unit that offers an articulating and telescoping aerial with a working height of 42 feet.

Its many standard options include: boom tip covers, single handle controls, continuous rotation, full pressure hydraulic controls, and an emergency lowering valve. By adding a host of options, it can be fully customized to meet individual needs.

Product Features

• Continuous rotation is standard on all insulated ETC units.

• Full pressure hydraulic controls located at basket and turret w/ full feathering capacities from both upper and lower controls.

• Hydraulic leveling via master/slave system providing a bucket dump for clean out and operator rescue.

• Shear ball rotation gear driven by external drive gear box. The gear box has an extended shaft for manual rotation.

• Internally mounted holding valves (integral part of cylinder) lock cylinders in place in the event of hydraulic failure.

• All pins turn on replaceable bushings.

• Hydraulic cylinder extension of inner boom providing maximum clear span of inner boom for insulation.

General Specifications

ETC 37 IH (Insulated)

Height to Bottom of Bucket*: 37′

Working Height*: 42′

Stowed Height*:10′

Rotation: Continuous

* Based on 36″ frame height

ETI manufactured equipment meets or exceeds OSHA, ANSI 92.2 and FMVSS standards at time of manufacture.
