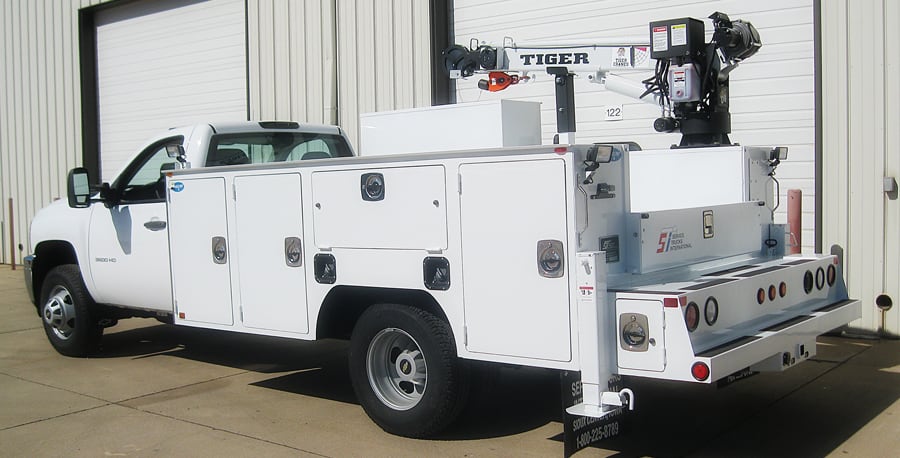

Eagle Pro I bodies are designed to offer maximum payload and storage for smaller GVW chassis. Featuring an extensive list of standard features and bolt on options, Eagle Pro I bodies can be configured to meet a fleet’s specific requirements and are built with the quality and dependability necessary to maximize return on investment, according to the company.
2042 Standard Features:
• 20” x 42” cabinets with 55” clear deck width
• 14 gauge A60 galvaneal cabinet wall & top
• 14 gauge A60 galvaneal cabinet floors
• 11 gauge A60 galvaneal doors with stainless steel hinges
• 11 gauge A60 galvaneal rigidized tread plate deck floor
• 3” C channel long sills - full length
• 12 gauge A60 galvaneal crossmembers on 14” centers
• 98” overall width
• 20” overall cabinet depth with 18.5” inside clearance
• 42” overall cabinet height with 39” inside clearance
• 120.5 Cubic feet of storage – 11-foot body
• 100.5 Cubic feet of storage – 9-foot body
• Oxygen/Acetylene Storage in choice of cabinets
• 24” deck side height
• 16” workbench with 6” step and full thru cabinet & vise mount
• Body, crane tower and outriggers rated at 20,000 ft/lbs. moment load thru 360 degrees
• Designed for Class 3-5 dual rear wheel cab chassis with 13.5 or 19.5 tires
• Class V receiver hitch
• Manual out, crank up/down outriggers
• Full length drip rail
• Galvanized infinitely adjustable shelving with lips
• 3 point locking stainless steel D handles with blind mounts for improved security
• Stainless Steel Front Chip Guards
• Centralized wiring and breaker panel
• PPG Delfleet Polyurethane topcoat – exterior
• Body underside is undercoated - wheel wells are seam sealed
• Available in 9ft x 60 ca and 11ft x 84 ca
• Available in crane and service body configurations
