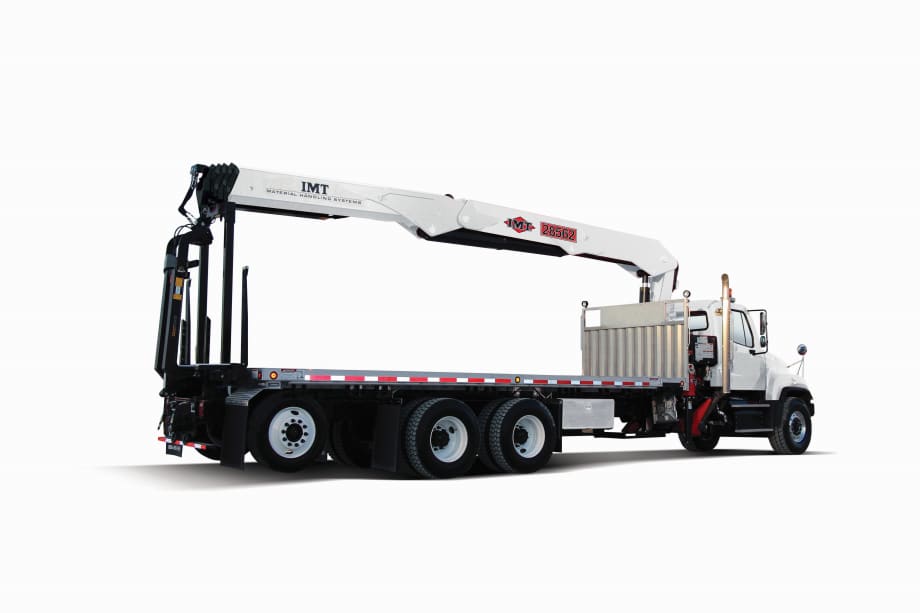

Iowa Mold Tooling Co.'s (IMT) 28562 hydraulic loader crane offers customers another option for efficient handling of pallets of materials in the building supply and construction industries.

The IMT 28562 hydraulic loader features the highest rating in the IMT lineup at 161,490 foot-pounds (22.3 tm). It has a maximum lift capacity of 5,700 pounds, up to 62 feet 3 inches of horizontal reach and a maximum vertical reach of 71 feet 4 inches. The loader is capable of lifting 2,400 pounds at its maximum horizontal reach.

A 22-foot (6.7-meter) hydraulic out-and-down stabilizer span provides customers with excellent stability for loading and unloading palletized goods, while a high lift-to-weight ratio allows for maximum payload on the truck.

The IMT 28562 loader includes a standard RCL (rated capacity limiter) 5300 system, which blocks load-increasing functions when full capacity is reached. The loader’s standard radio remote control comes equipped with an information center that provides continuous feedback on load moment and operation conditions.

Additional features of the new IMT 28562 loader include a 420-degree rack and pinion rotation; a rotation system that operates in a continuous oil bath to reduce friction and enhance life; a standard oil cooler to extend hydraulic system longevity; and a counterbalance valve on each cylinder to stop motion in case of a hose failure.

IMT also offers the 16000 and 24562 models of hydraulic loaders.
