Although ubiquitous across the globe, the cabover engine (COE) truck — so named because the passenger cabin literally sits on top of the engine compartment — is a relative niche player in the U.S., where conventional cabs own the lion’s share of the Class 4 to 7 medium-duty truck market.

Yet the COE (also called cabover) has become increasingly popular in recent years for a growing number of fleet applications, including urban delivery, lawn maintenance, pest control and other jobs. In these applications, the cabover’s signature “flat nose” and wide windshield make it easier — and often safer — for drivers to maneuver in tight city and residential areas.

How do cabovers and conventional cabs compare? When choosing between the two types of trucks for specific applications, what should fleet managers consider?

Review these six comparison points:

1) Increased Maneuverability

The primary reason for choosing a cabover is maneuverability, according to Mark Sugar, manager of truck engineering for PHH Arval, a U.S. and Canadian fleet management services provider.

“In highly-populated, urban geographic areas the cabover is the best option for navigating traffic-filled, narrow and challenging streets,” he said.

Ken Gillies, truck ordering and engineering leader for GE Capital Fleet Services, a global fleet management company based in Eden Prairie, Minn., agreed, but with a caveat.

“Where a customer is operating in tight streets, the cabover can be very beneficial,” Gillies said. “But many of the newer conventional cabs have very short front bumper to back of cab (BBC) lengths, although not as short as a cabover, and may offer the required maneuverability while still allowing a fleet the advantages of a conventional cab.”

Advantage: Cabover.

2) More Engine Power Options

One of the advantages of conventional cabs that Gillies referred to is a wider range of diesel engine power ratings to choose from, which enables the fleet manager to more precisely match the truck’s capabilities with the job.

As a frame of reference, Kenworth builds both cabovers (K270 and K370 models) and conventional cabs (T270 and T370 models) for its Class 6-7 lineup. The cabover models offer three horsepower and torque ranges — from 220 hp to 250 hp and up to 660 lb.-ft. of torque — whereas the conventional cabs substantially widen that range, to nearly a dozen options — from 200 hp to 325 hp, with up to 750 lb.-ft. of torque.

The truck’s application is a key factor here. If the truck is going to be used primarily for over-the-road, long-haul applications or needs to pull a heavy trailer, then the conventional cab, equipped with a higher horsepower and torque engine, would be the better fit.

Advantage: Conventional truck.

3) The Fuel Economy Edge

Which type of cab has the edge in terms of fuel economy?

“Cabover models tend to experience a fuel economy advantage, mostly due to their smaller displacement engines,” said Gillies.

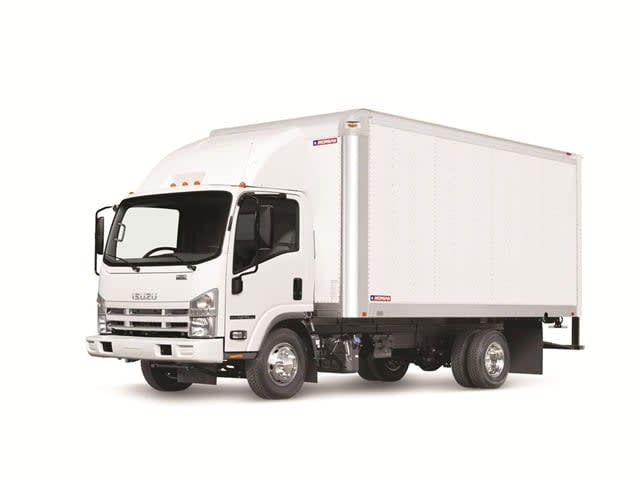

This difference in engine displacement is mostly found in Class 4-5 trucks, where cabovers, such as the Isuzu N-Series and Mitsubishi Fuso Canter, are equipped with four-cylinder diesel engines, compared to conventional cabs, such as the Ford F-550, which is powered by larger V-8 or even V-10 engines.

In Class 6-7 trucks, the engine displacement gap is minimal, with both cabovers and conventional cabs being equipped with big bore I-6 diesel engines in most cases.

Which cab type is more fuel-efficient ultimately depends on truck class.

Advantage: Neither.

[PAGEBREAK]

4) Ensuring Driver Comfort

Conventional cabs allow flexibility and customization that you don’t get with a cabover in lower GVWs, according to Don Scare, regional fleet services manager for PHH. “Cabovers are very cookie-cutter, not even allowing for a seat choice. When you’re a driver on the road for long hours a day, a seat is a key contributor to comfort,” he said.

According to Gillies, “Some of the cabover model offerings are challenging for drivers to get in and out of, with limited space between the front edge of the door frame and the seat riser where the driver’s feet pass during every entry and exit of the cab. Also, drivers feel like they are driving a ‘real truck’ when it’s a conventional cab configuration.”

In short route, stop-and-go applications, such as urban delivery or residential landscape service, driver comfort may not be as much of a concern because drivers don’t spend as much time in the truck.

“Cabover configurations have gained popularity with less experienced drivers and in applications requiring multiple local deliveries or in speicific industries such as landscaping. In these situations, we have found the cabover as the preferred alternative,” said Baran of ARI.

In these cases, according to the experts, cabovers would work fine, especially considering the maneuverability advantage in tight spaces. But in long haul, over-the-road situations, driver comfort would be of importance, giving the edge to the conventional cab.

Advantage: Conventional truck.

5) Reviewing Acquisition Costs

Gillies on balance, cabover models tend to run approximately 3- to 5-percent higher in price than comparable conventional cabs.

“Lower production volume could be considered as one potential reason. Fewer competitors in a particular model/GVWR affect pricing as well,” he said.

Advantage: Conventional truck.

6) Ease of Maintenance

One of the advantages of a cabover, from a maintenance perspective, is the ease of accessibility under the hood — or, in this case, under the cab — to most of the important engine components, helping reduce repair time (and costs).

However, according to Gillies, other factors tend to drive maintenance cost of cabovers higher than the conventional cabs.

“Some reasons could be: higher parts costs for cabovers, fewer dealer choices and fewer shops in general that are willing to tackle the maintenance, especially where the shop may have lower familiarity, and fewer repair parts suppliers to choose from,” Gillies cautioned.

Advantage: Cabover.

[PAGEBREAK]

Conventional Cabs Versus Cabovers

GE Capital Fleet Services provides details on which fleet applications are best suited for conventional cabs or cabovers:

Conventional Cabs:

• Where overall length of the completed truck is not in conflict with state/federal length regulations.

• When cab interior room is of high importance — where drivers need increased steering wheel to seat position room and where passengers are routinely present.

• Where broader drivetrain option content is needed to get the proper match-up to the job required.

Cabovers:

• Tight inner-city operations where streets are narrow and parking availability is poor.

• Residential delivery and service applications can be a good vocation, especially considering how frequent the truck needs to be using the customer's driveway or parking at the curb since the overall space that's needed is somewhat less than a conventional cab.
