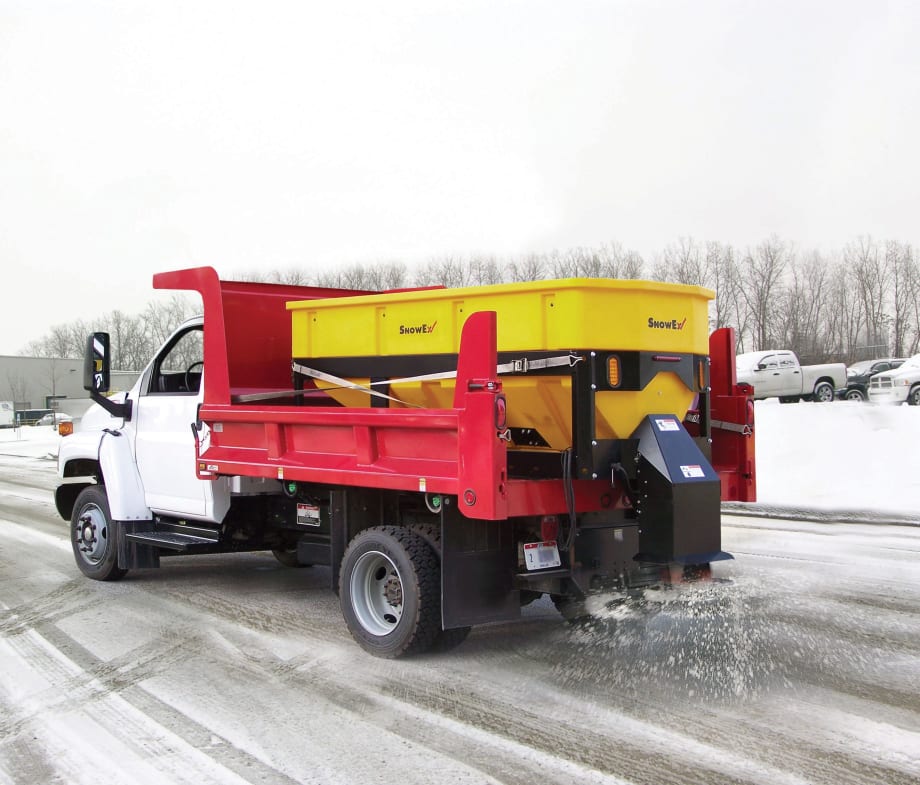

SnowEx offers the V-Maxx 9500 — its largest V-box-style spreader to date. Featuring a 4-cubic-yard capacity hopper, the entirely electric powered V-Maxx 9500 is ideal for municipalities and winter maintenance contractors catering to larger applications.
Designed for use with larger commercial-duty pickups, flatbed trucks and dump-bed trucks, the V-Maxx 9500 features an all polyethylene-constructed material hopper that boasts the patented SnowEx Material Feed System — consisting of a multi-angle hopper design, heavy-duty auger drive, inverted-“V” baffle configuration and an attached vibrator.
The System’s multi-angle hopper helps provide a continuous flow of material to the auger drive. When compared with conveyor-driven spreader alternatives, augers deliver material to the spinner more accurately and efficiently. The vibrator shakes the inverted-“V” baffle, which helps reduce material clumping and ensures that the entire load does not rest on the auger. The result of this combination of components is a continuous material flow whether spreading 100-percent sand, 100-percent salt or any combination in between.
The V-Maxx 9500 is entirely electric powered — meaning no engines, pulleys, sprockets, belts or chains to maintain. The ¾-horsepower, heavy-duty 12-volt electric drive system produces high torque at the auger transmission output shaft with low amperage draw. The spreader can empty a full hopper — up to 8,500 pounds of material — in just 20 minutes. To ensure durability and ease of maintenance, the electric drive system is completely sealed within a weather-resistant enclosure and includes two grease Zirk fittings.
Furthermore, the poly hopper construction eliminates the corrosion concerns and constant maintenance commonly associated with steel-built alternatives. Though the hopper features heavy-duty, thick-walled construction, it is still up to 40 percent lighter than similar capacity steel spreaders, which frees up vehicle payload and increases gas mileage.
The innovative cab-mounted spinner/auger control allows for independent spinner speed and auger speed adjustment. By being able to adjust how fast material leaves the hopper and how fast the spinner propels it, virtually any application demand can be met while minimizing material waste. Spread width is infinitely variable between 10 to 40 feet. A digital LED display with status monitoring and system protection is standard, as well as an auto-reverse function in the event of auger jams.
As with all SnowEx V-box-style spreaders, the V-Maxx 9500 is built with a Quick-Connect spinner assembly. Compared with competitive models that require the spreader assembly to be unbolted or for the entire spreader to be removed from the truck’s bed before being able to tow, the Quick-Connect system allows the spinner assembly to be removed in seconds by simply removing a pin. This feature effectively makes the service vehicle more useful, not having to be dedicated to one function, while also simplifying off-season spreader storage.
Other standard features include a top screen, fitted tarp, non-combustible automotive wiring harness and an auxiliary LED brake light. Optional accessories include an auxiliary light kit and the SnowEx AccuSpray material pre-wetting system.
All SnowEx spreaders include a two-year parts and labor warranty.
SnowEx is a product division of TrynEx International. Other TrynEx brands include TurfEx turf care equipment, and SweepEx broom attachments. For more information, contact TrynEx International, 531 Ajax Drive, Madison Heights, MI 48071, call (800) 725-8377 or (248) 586-3500, fax (248) 586-3501, e-mail info@trynexfactory.com or visit www.trynexfactory.com.
