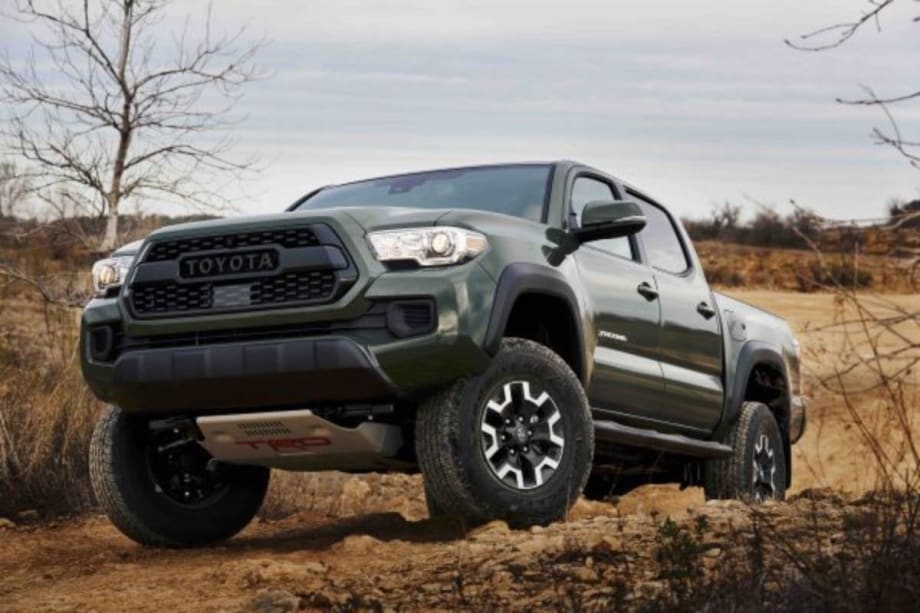

Now, 2020-and-newer Tacoma owners have a suspension lift option available from Toyota Racing Development (TRD). The new Tacoma TRD lift kit is now available nationwide as a dealer-installed option, providing up to a two-inch front and one-inch rear lift on most V6-powered 4×4 Tacomas. This kit was designed and tested by TRD engineers and is the only one validated to be compatible with the Toyota Safety Sense (TSS) system.

At the heart of the kit are new monotube Bilstein shocks that adopt digressive valving to provide improved on- and off-road vehicle dynamics. Specifically designed to complement the additional lift, each Bilstein shock is fitted with new TRD red dust boots and “Tuned by TRD” graphics. The front shocks provide an additional two inches of lift thanks to the adjustment of the coil spring position on the shock tube. The front shocks also improve off-road performance thanks to extended rebound stroke that makes use of the additional suspension travel.

The rear Bilstein shocks employed in the kit also enhance off-road performance thanks to their larger shock body compared to the standard Tacoma shock (two inches vs. one-and-a-half inches). The larger shock body houses additional oil volume to help dissipate heat and improve damping response on demanding off-road terrain. The larger rear shock bodies also accommodate larger pistons compared to stock and they employ a piston rod that is 4mm larger for increased strength. Cast-iron spacers are included in the kit to lift the Tacoma 1 inch in the rear.

With the kit installed, frame ground clearance increases by 1.7 inches. The kit also improves the approach angle (+3.1 to 32 degrees), breakover angle (+1.6 to 23 degrees), and departure angle (+0.5 to 24 degrees).
