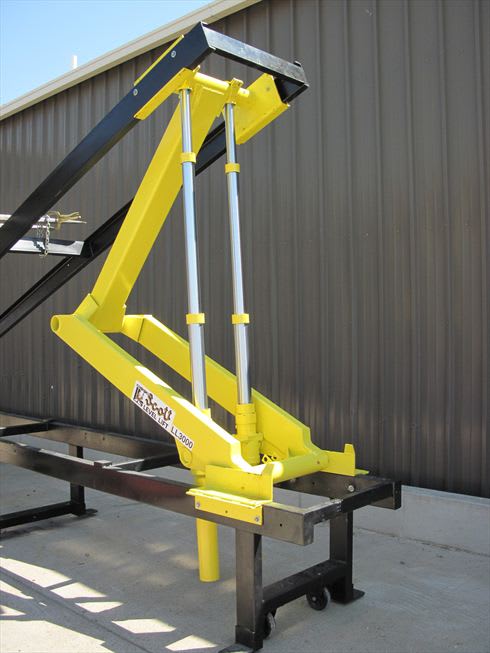

The Scott Level Lift is a unique combination of a telescopic and scissors hoist designed to incorporate the advantages of both into one all-purpose hoist. lt utilizes twin telescopic cylinders mounted within a new superior designed scissor frame, and is built to give maximum torsional strength in order to handle uneven loads.

For auxiliary transmissions with offset drive shafts, the LL-2000 has wider cylinder clearance.

The low profile of the Scott LL-1000 and LL-2000 eliminates the need to cut out body crossmembers, in most cases, according to the company. The Level Lift cylinders are high polished and hard-chromed for durability, long wear, and anti-corrosion.

The hoists can be mounted in either direction, and the lower frame mounting brackets are designed to self-align the hoist when installing, eliminated the chance of misalignment, according to the company.

The LL-2000 provides up to 30 tons of capacity with certain box and CT configurations and weighs only 980 lbs., plus 40 quarts of oil. The LL-1000 weighs only 650 lbs., plus 27 quarts of oil. These weight savings mean greater pay loads and greater profit for you. Both hoists utilize a high-pressure hydraulic system with either a high-pressure piston pump or an optional high pressure, high volume gear pump, and supply 33OO PSI at recommended speeds.
