Stellar Industries is introducing a newly designed flip sheave for its heavy-duty mechanics crane line. It features a bar style anti two-block activation system, which maintains its load block activation orientation whether in standard or tight confine mode of operation.

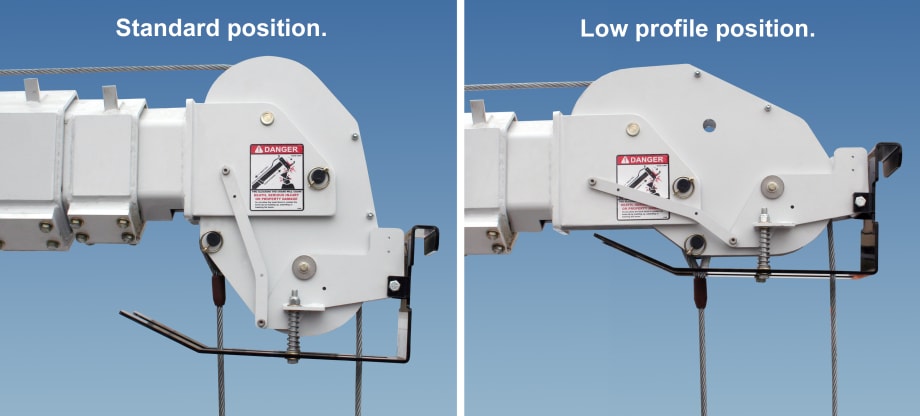

By pulling the flip sheave pin, operators can easily go from the standard load control horse head design that facilitates a higher loading angle, to a horse head configuration that can easily maneuver within tight or limited spaces. The new design also maintains a quick and easy transformation from a two-part line to a single-part line.

The standard two-part line position allows for better cable location when making lifts at a high boom angle, such as loading into the truck bed. It keeps the wire rope further from the boom and prevents rubbing. The new Flip Sheave low profile position, designed for the singlepart line configuration, is beneficial when lifting something in a tight location, such as inside a cab or under a hood. The low profile configuration creates more room to lift the load and position loads in limited height areas.

The new Stellar flip sheave design will roll out as a standard feature on all models of cranes from the model 7621 cranes up through the model 14528 cranes.
