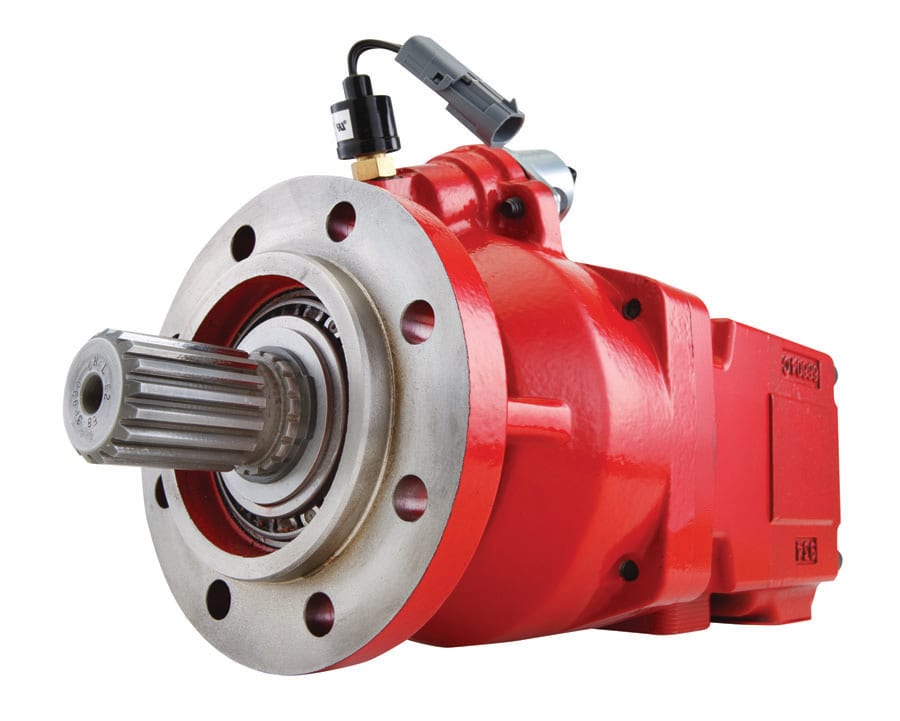

Power density is what you will find in the Chelsea 560V Series P.T.O. and Vane Pump combination. The new rear mounted P.T.O. features an integrated Vane Pump. The Vane Pump design is based on the Parker T6C family. With interchangeable Vane cartridges that can achieve flow rates from 3.4 (12.9 LPM) to 31.7 GPM (119.9 LPM) at 1200 R.P.M. and pressure ranges up to 3500 PSI (240 Bars).
The combination of never having to set gear back lash and the Vane Pump design provide a quiet operation. The design of the 560V clutch pack provides a single continuous duty torque rating of 335 Lbs. ft. (454 N.m.). Because of this, the unit will no longer require a intermittent torque rating. Both the main P.T.O. housing along with the suction and pressure ports on the Pump can be rotated to provide maximum clearance underneath a truck. A wet spline connection between the P.T.O. and Vane Pump ensure long life, reducing maintenance costs and time. Chelsea continues to lead the way in innovative power transfer concepts that provideease of installation, power density, and value for the vocational truck market.
